Model RP-8

product image

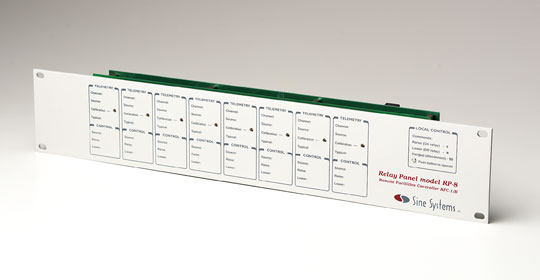

RP-8 Relay Panel front view

Click image for more views


8-Channel Relay Panel

The RP-8 relay panel provides the interface between the RFC-1/B and external devices such as transmitters. Each RP-8 has eight channels of input and control. Each channel consists of one telemetry input and one pair of control relays.

Up to eight relay panels can be connected to an RFC-1/B. The result is a system capable of up to 64 channels.

RP-8 relay panels are field installable. A new connector (included) is added to the existing flat cable. A jumper is installed to select the channel block.

Telemetry inputs can be protected from surge damage by installing an SP-8 surge protector.
